AR Sandbox

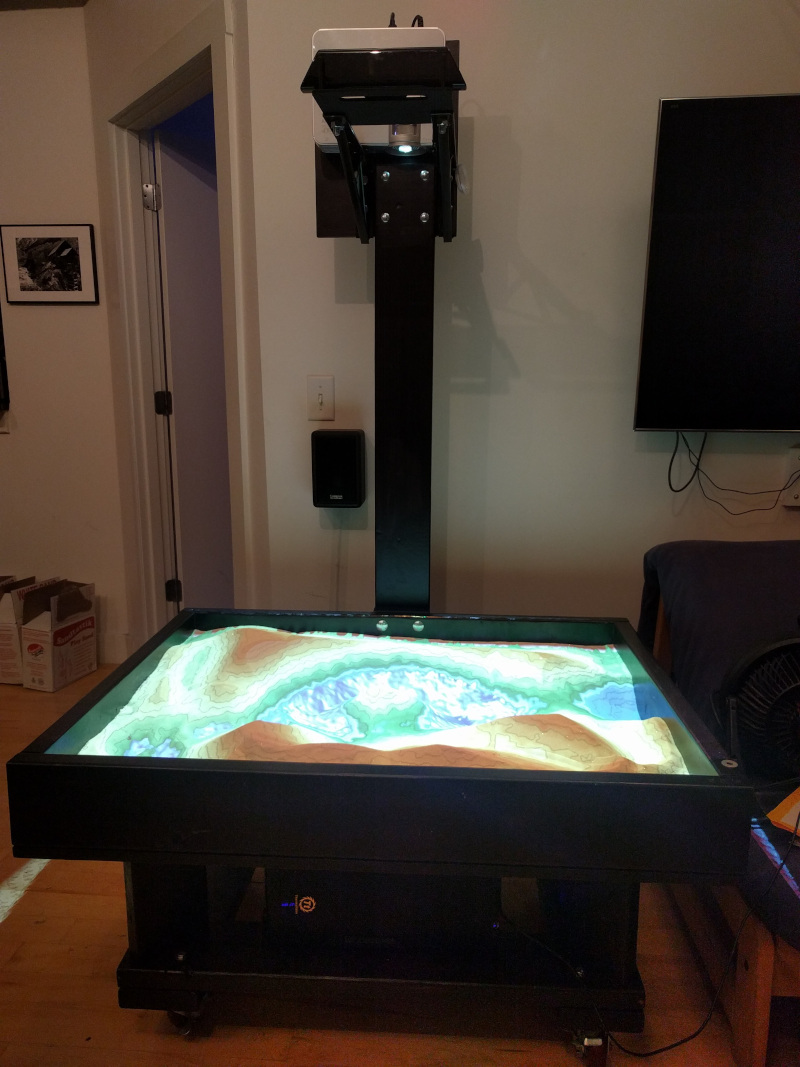

This is an example of the UC Davis Augmented Reality Sandbox that I built.

This software uses a Microsoft Kinect 3d sensor to measure the topography of the sand, an nvidia graphics card to run a cfd simulation of water, and a projector to render isolines and water on the sand.

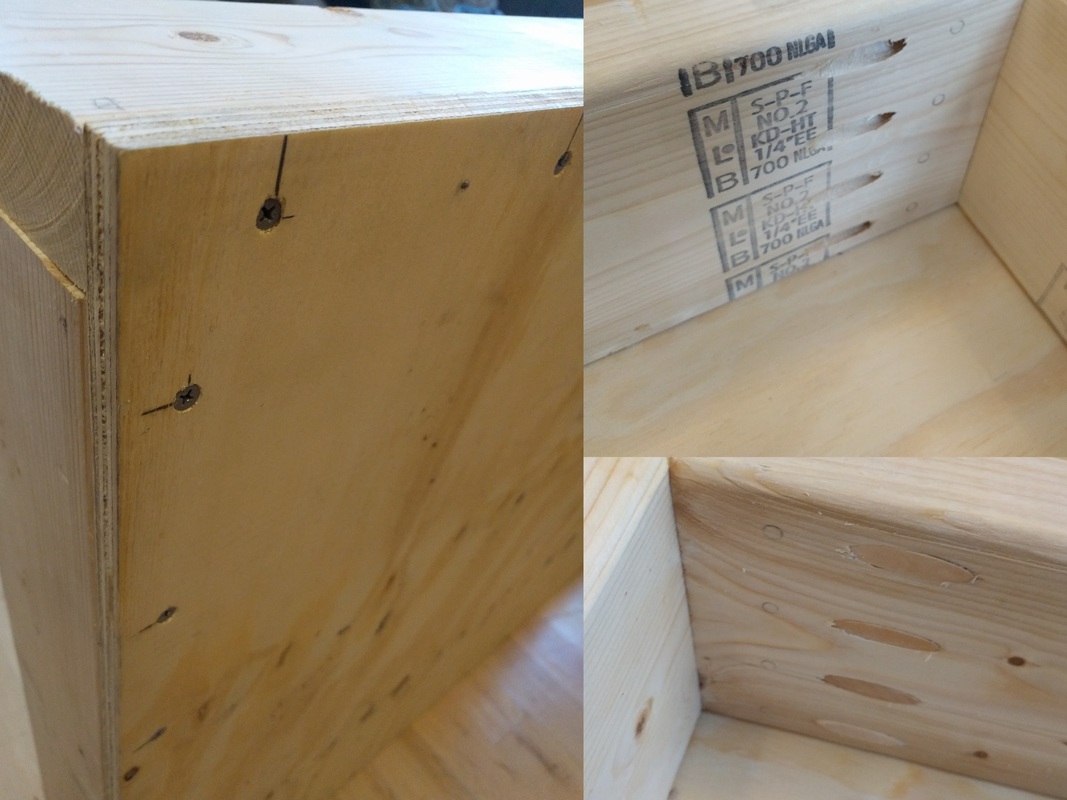

Box built out of plywood, 2x6"s and a kreg jig. Not quite new yankee workshop.

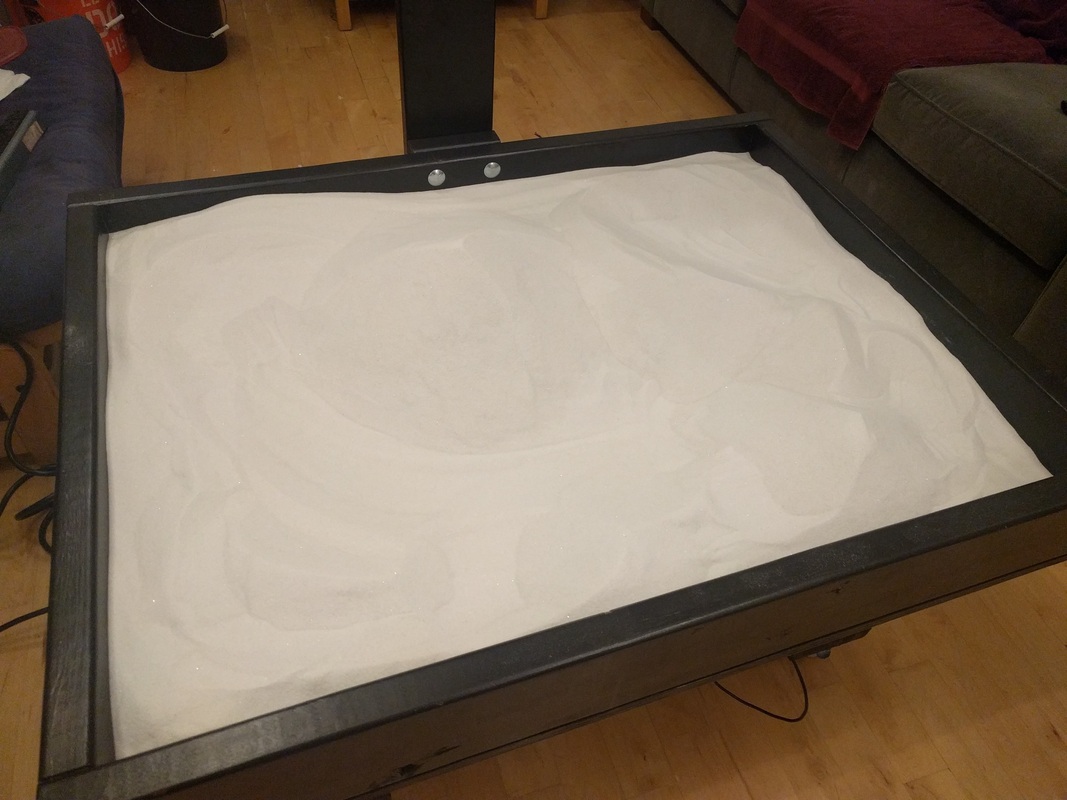

Filled up with sand.

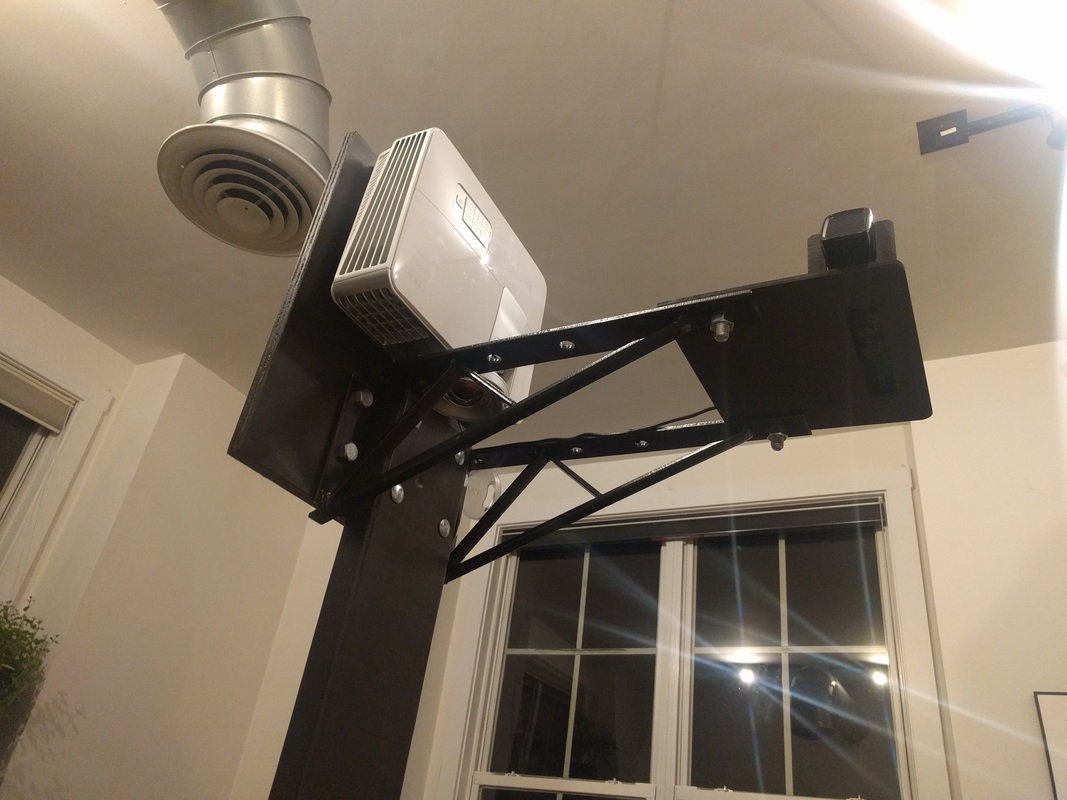

The projector is designed to operate off-axis so it's conveniently not in the same spot as the kinect.

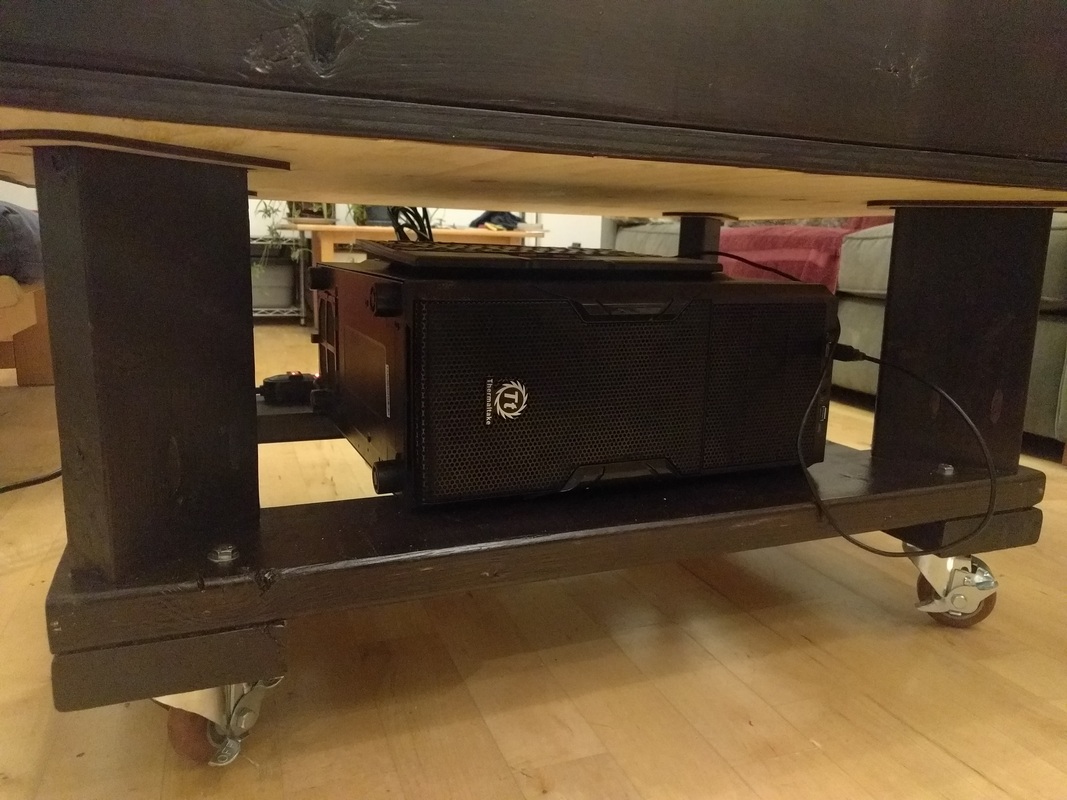

A modestly appointed linux box hides below.

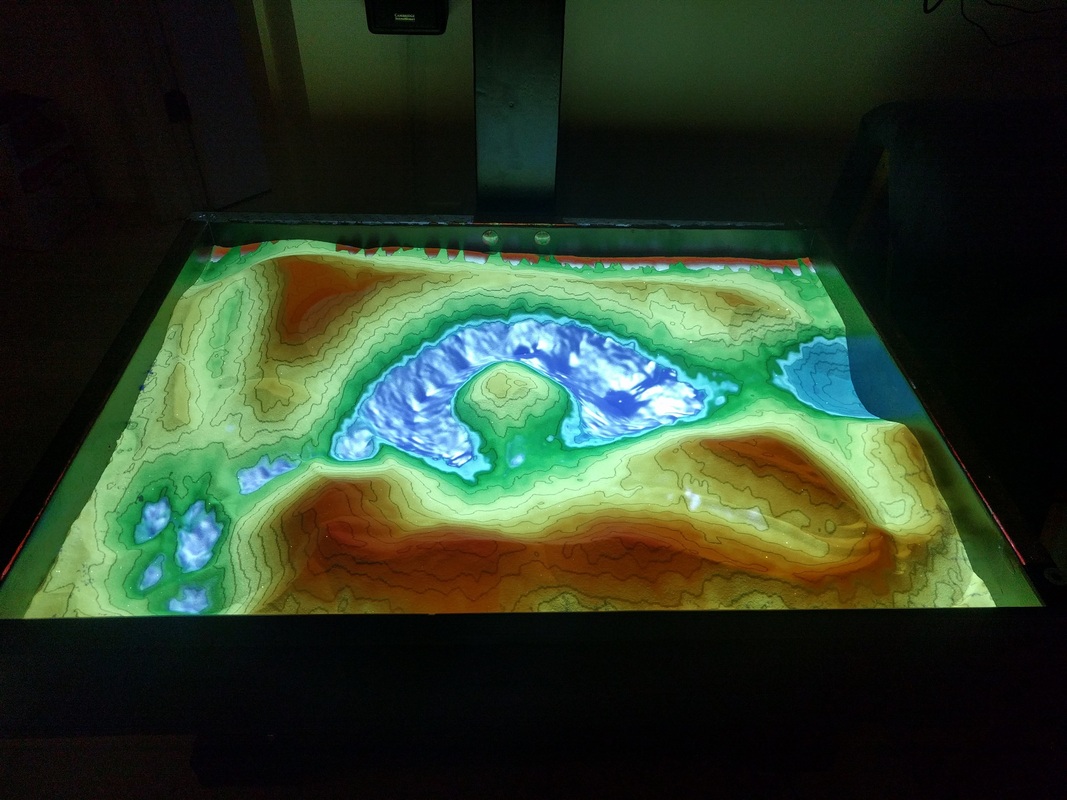

Running!
